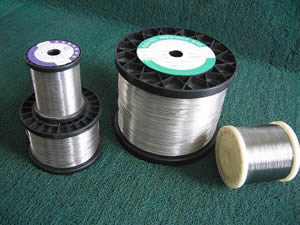

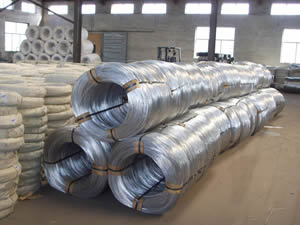

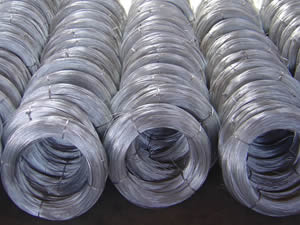

Galvanized Iron Wire

Materials: (a). Mild steel wire (b). bullet wire (c). high-carbon steel wire.

Wire gauge size: 8#-------38#.

According to the difference of zinc coating process. can be divided into (a). electro galvanized steel wire (b). hot-dipped galvanized steel wire.

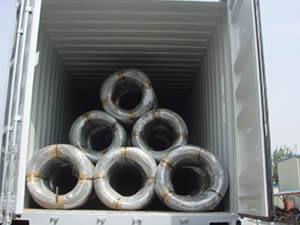

Packing: in coils and from 0.7kgs/coil to 800kgs/coil then each coil to be wrapped inside with PVC strips and outside with Hessian cloth or inside with PVC strips and outside with weaving bag.

Galvanized steel wire, also known as galvanized iron wire, finds most uses in binding of construction materials or weaving of galvanized wire mesh products.



Wire Gauge
SWG in mm
BWG in mm
In Metric System mm
8#
4.06
4.19
4.00
9#
3.66
3.76
-
10#
3.25
3.40
3.50
11#
2.95
3.05
3.00
12#
2.64
2.77
2.80
13#
2.34
2.41
2.50
14#
2.03
2.11
-
15#
1.83
1.83
1.80
16#
1.63
1.65
1.65
17#
1.42
1.47
1.40
18#
1.22
1.25
1.20
19#
1.02
1.07
1.00
20#
0.91
0.89
0.90
21#
0.81
0.813
0.80
22#
0.71
0.711
0.70
23# to 34# also available for galvanized iron wire.
