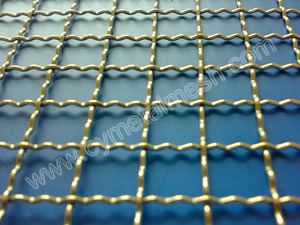

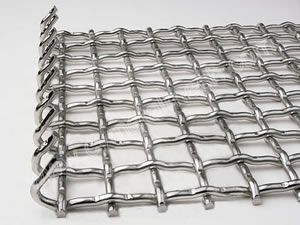

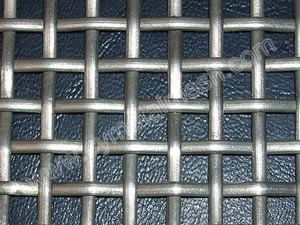

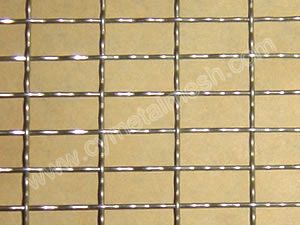

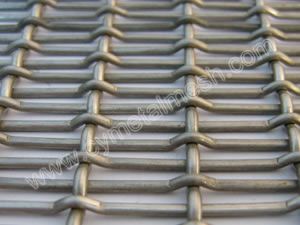

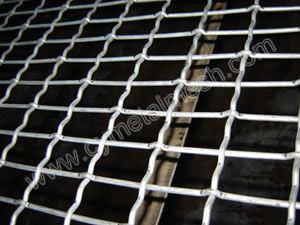

Crimped Wire Mesh

Material: Galvanized iron wire, stainless steel wire, high carbon steel wire.

Weaving and characteristics: Rolled and then woven by double intermediate crimp, lock crimp, flat top crimp, double crimp, inter crimp, sturdy structure.

Scope of specification: 0.12-3cm.

Uses: Crimped wire mesh is used in mine, coal factory, construction and other industries. Professions for sieving and protecting, Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.




Specification List of Crimped Wire Mesh
Wire Gauge
SWG
Wire Diameter
mm
Mesh
Inch
Aperture
mm
Weight
kg/m2
14 2.0 21 1 4.2
8 4.05 18 1 15
25 0.50 20 0.61 2.6
23 0.61 18 0.8 3.4
24 0.55 16 0.1 2.5
24 0.55 14 0.12 4
22 0.71 12 0.14 2.94
19 1 2.3 0.18 1.45
6 4.8 1.2 2 20
6 4.8 1 2 20
6 4.8 0.7 3 14
14 2.0 5.08 0.3 12
14 2.0 2.1 1 2.5
14 2.0 3.6 1.5 1.9
